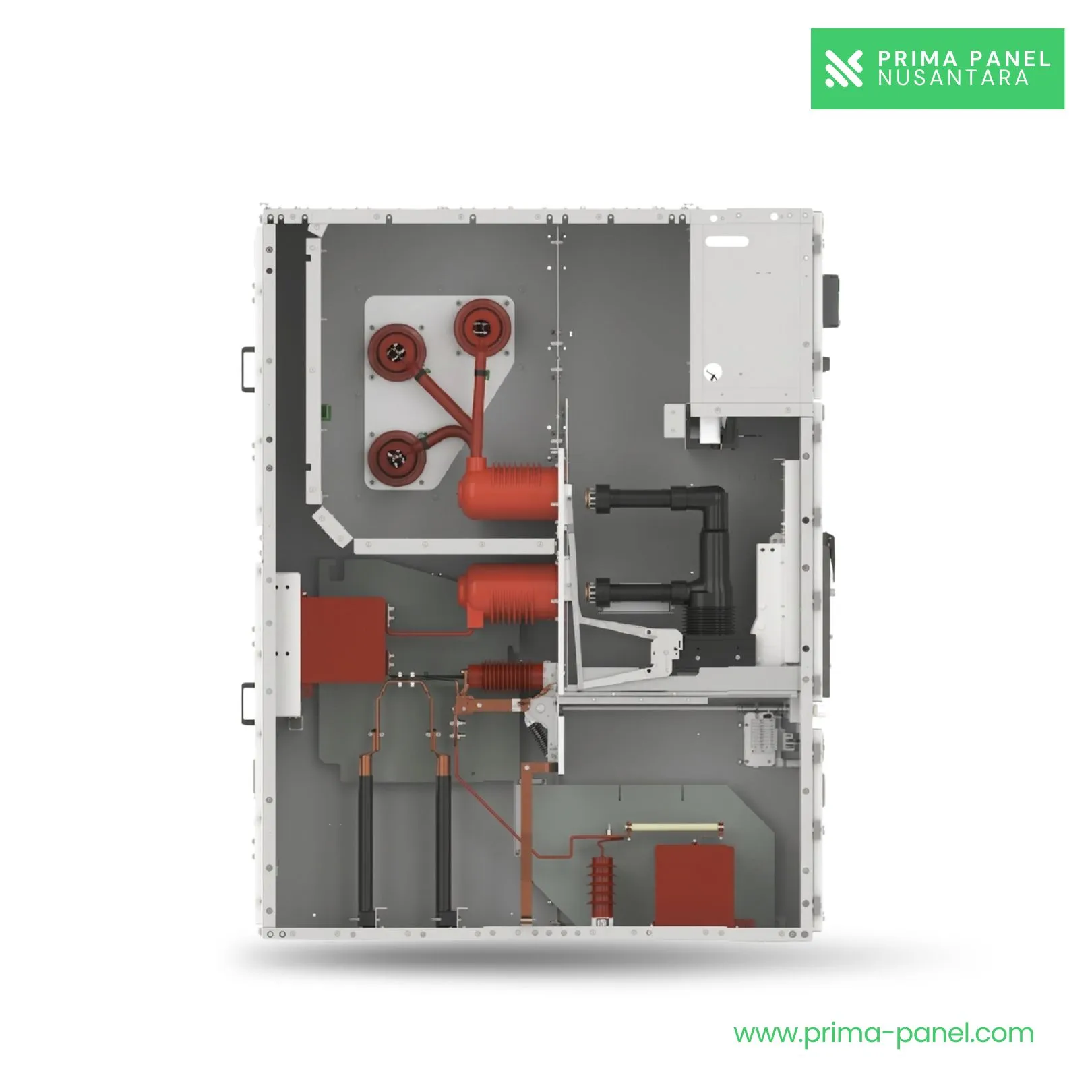

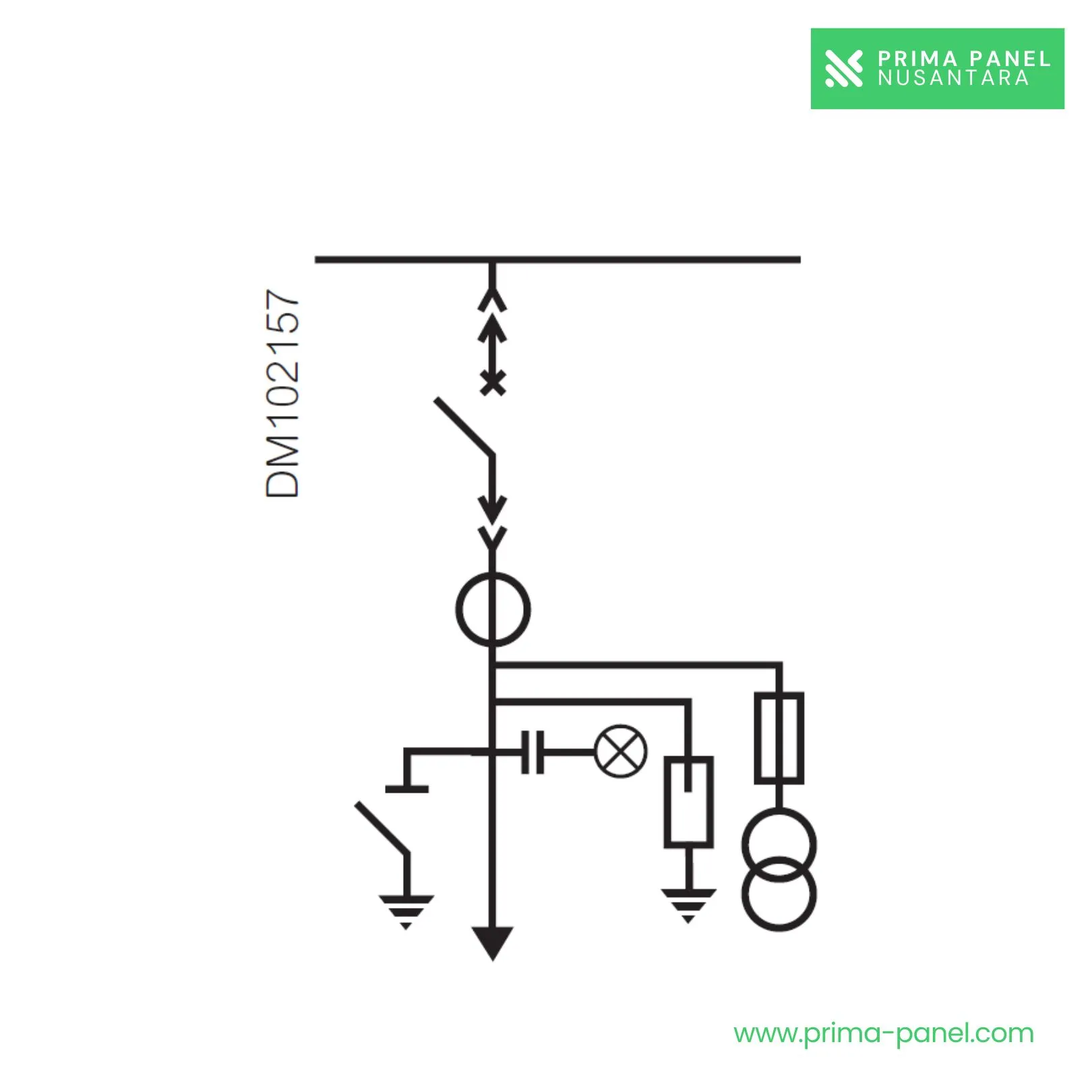

Incomer or Feeder (I/F)-Type Cubicles

• Rated Voltage: Up to 24 kV
• Short-Time Withstand Current: Up to 40 kA (31.5 kA for 24 kV)
• Circuit Breaker: EvoPacT HVX, rated 630–4,000 A¹² (up to 3,150 A for 24 kV)
• Short-Circuit Making Current (Ip):
  • 50 Hz: Up to 100 kA
  • 60 Hz: Up to 104 kA³
• Dimensions:
  • Height: 2240–2400 mm
  • Width: 650–1000 mm
  • Depth: 1440–2450 mm⁴
• Approximate Weight: 700–1,470 kg (fully equipped, depending on configuration)⁵

Notes

1. Forced cooling is required for selected current ratings.
2. For 4000 A applications, the cubicle width is 1000 mm and the depth is 1640 mm.
3. For 60 Hz applications, please contact Prima Panel Nusantara or Schneider Electric.
4. Additional depth is required for configurations with two sets of current transformers per phase.
5. Weight may vary depending on cubicle configuration.
