Feeder with Contactor – FC
The MCSeT Feeder with Contactor (FC) is designed for switching and control of medium voltage motors and load applications. Available for 7.2 kV and 12 kV systems with short-time withstand currents up to 40 kA (limited by fuse), it features two coupled cubicles with integrated switching, protection, and control components, along with front-access cable connections […]

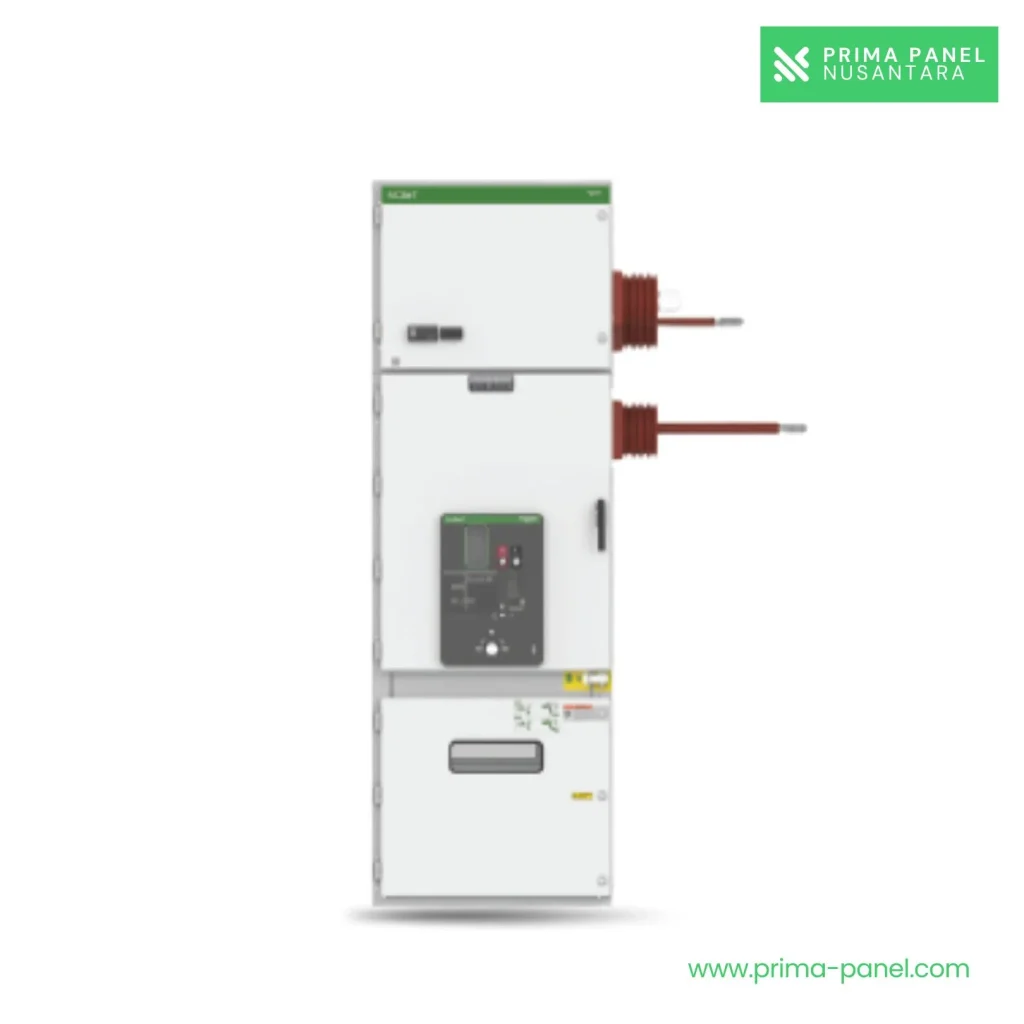

Busbar Metering and Earthing (BME)
The MCSeT Busbar Metering & Earthing (BME) cubicle is designed to provide metering and earthing functions for medium voltage busbar systems. With its compact modular design, it supports safe operation and seamless integration into MCSeT switchboard configurations. Available for rated voltages up to 24 kV with short-time withstand currents up to 40 kA (31.5 kA […]

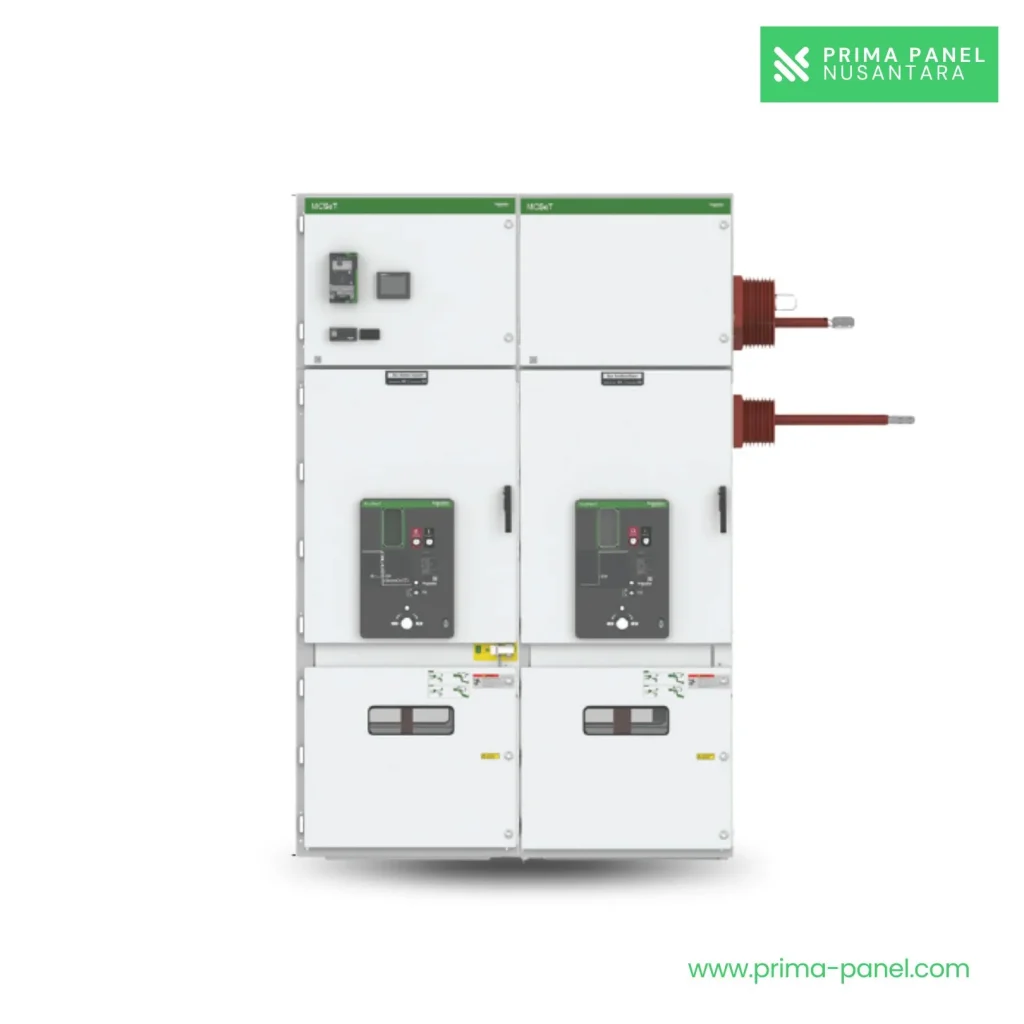

Bus Section Coupler (BSC) and Bus Section Riser (BSR)
The MCSeT Bus Section Coupler (BSC) and Bus Section Riser (BSR) are designed for busbar sectionalizing, helping improve system flexibility, operational continuity, and maintenance accessibility. Built with a modular design, these functional units support reliable power distribution while simplifying switchboard expansion and operation.

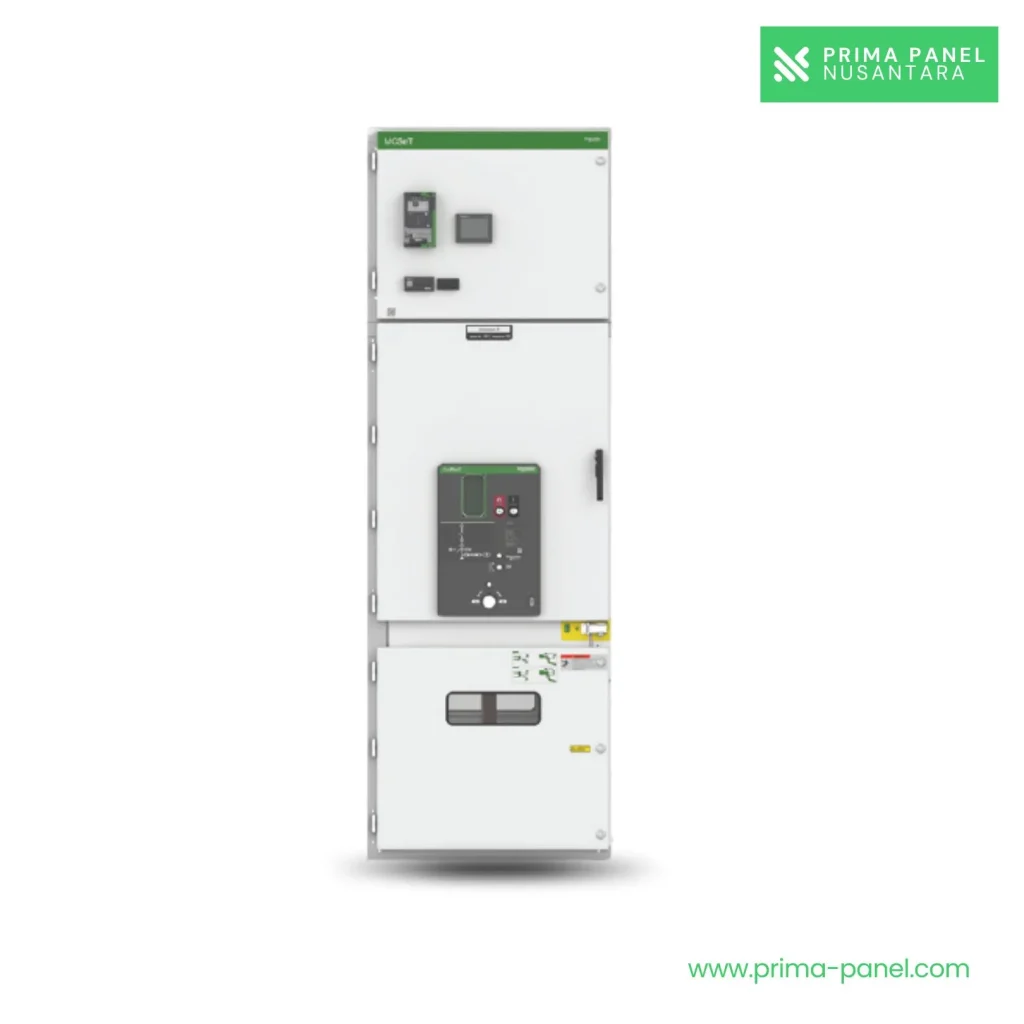

Incomer or Feeder (I/F)-Type Cubicles
The MCSeT Incomer or Feeder (I/F) cubicle is designed for incoming and outgoing medium voltage power distribution. Equipped with the EvoPacT HVX vacuum circuit breaker, it provides reliable protection, monitoring, and switching for a wide range of industrial, commercial, and infrastructure applications.
